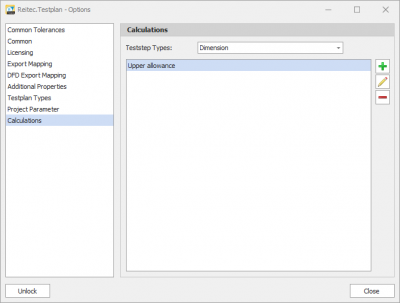

Area: Calculations
Individual calculations can be created based on feature data and properties. Calculated values are available during export.
The following functions are available in the dialogue.
| Icon | Description |
|---|---|
 | Creates a new calculation. Description Dialogue see below. |
 | Edit an existing calculation. Description Dialogue see below. |
 | Delete an existing calculation. |

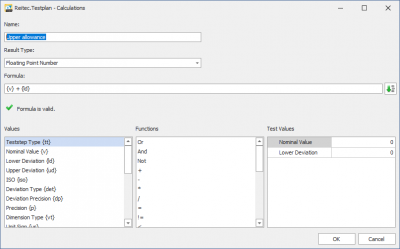

Calculation dialogue
List of existing input fields
| Name | Description |
|---|---|
| Name | Display name of the calculation in the AddIn |
| Return type | Return type of the calculation (floating point number, integer, text). |
| Formula | Calculation Formula |
The value list shows the values available for the calculation. Each value is assigned a short name; double-click on a value to insert it into the formula.
The function list shows the available functions.
The test values can be used to test whether the syntax is correct and the calculation produces the desired result.
The content refers to version 2.0.0.0
