Area: Testplan Types

In this area you can view and edit the existing testplan types and symbols.

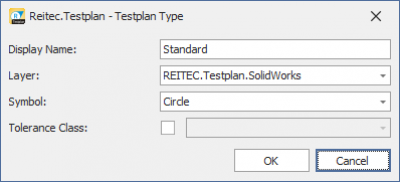

Test plan definition

Name	Description
Displayed name	Displayed name of the test plan definition.
Layer	The layer associated with the definition.
Symbol	The used symbol of the test plan definition.
Tolerance Class	The tolerance class of the test plan definition.

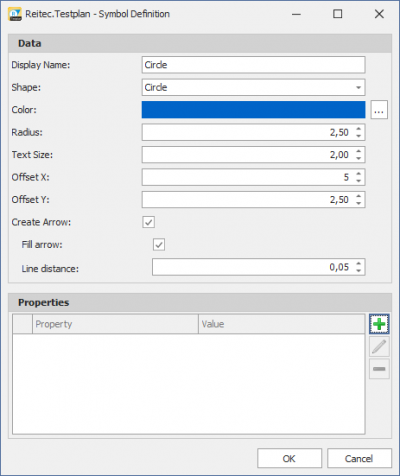

Name	Description
Display name	The name of the symbol definition.
Shape	The shape of the symbol (circle, triangle, square, pentagon, hexagon, heptagon, octagon)
Colour	The colour of the symbol.
Radius	Radius of the circle.
Text Size	Size of the font used to represent the number.
Offset X	Distance from the measurement in X direction.
Offset Y	Distance from dimension in Y direction.
Create Arrow	Sets whether to create the arrowhead.
Fill arrow	Specifies whether to fill the arrowhead.
Line distance	Sets the spacing of the line hatching. The greater the distance, the faster the creation.

The content refers to version 2.0.0.0
