Area: Additional Properties

Here you can add further properties for the characteristics as well as for the characteristic values.

In the feature dialogue, the property values can be changed.

The following functions are available in the dialogue.

Symbol	Description
	Creates a new property. Dialogue description see below.
	Edit an existing property. Dialogue description see below.
	Delete an existing property.
	Changes the display order. Property is moved to the top.
	Changes the display order. Property is moved to the bottom.

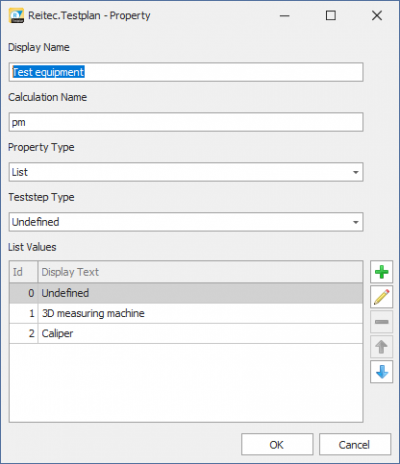

Dialogue: Property

Field name	Description
Display text	Text displayed in programme
Name in calculations	The short name used in calculations.
Data Type	Data type of the property (text, yes/no, floating point number, integer, list)
Characteristic Type	Assigned characteristic type. Properties are only displayed for certain feature types.
List Values	List values for properties of type 'List'.

The content refers to version 2.0.0.0
