This command automatically marks all inspection characteristics of a drawing. Depending on the setting, the function is only applied to the current sheet or to all sheets.The marking is done clockwise view by view. The numbering is in ascending order.

The following inspection characteristics can be marked:

• Dimensions
• Chamfer notes
• Bore and thread notes
• Surface symbols
• Geometric tolerances

During the generation process, all required values are read from the Inventor characteristic, stored in a test plan characteristic and supplemented by further data such as the characteristic number. The different types of characteristics are explained in chapter Edit mark.

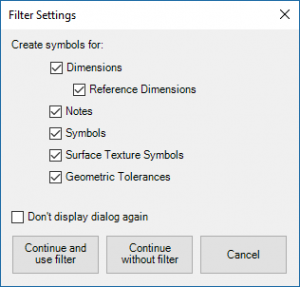

Basically, all supported Inventor characteristics are always marked. The filter dialog upstream of the labeling process can be used to restrict the labeling to certain types of characteristics.

The filter settings can also be adjusted in the options.

The content refers to version 3.0
