Lisencing
Trial Version
Reitec.Testplan can be tested for a period of 30 days for free. After that 30-day-period Reitec.Testplan must be activated. It is also possible to extend the test period.
Activation
After you have bought a license you have to activate Reitec.Testplan on each client.
1. Request a code

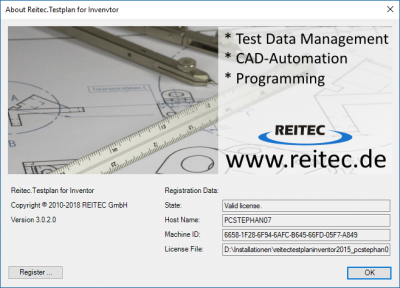

The program is activated with a special license file, which is generated by REITEC. You can request a license file from the “About”-dialog by clicking on the button “Request code”.
An email is automatically created. It contains all data, which is necessary for creating a license file.
The data is checked by a REITEC employee and the license file is generated. The code will be send to the requester by email. This process can take several hours.
2. Insert the code
In the “About”-dialog you can insert the received license file. Click on the button “Register” and select the license file.
To activate the license you have to restart Inventor. After a successfull activation the license data will be displayed in the “About”-dialog.
Installation parameters
The setup file can be called up with the following start parameters:
| Name | Beschreibung | Beispiel |
|---|---|---|
| LICMETHOD | Licensing method used. Local license service or network license service. | NETWORK, LOCAL or CLOUD |
| LICPORT | Port number for communication with the license service. | 8081 |
| LICSERVER | Name of the license server. | LOCALHOST or Servername |
| LICNUMBER | License number of the customer (for cloud licensing) | Sd54fgh6 |
| COMMONSETTINGSPATH | Path for the shared settings (if required) | \\SERVER1\share\ReitecTesplanSettings |
Example call with start parameters:
C:\Temp\Reitec.Testplan.Inventor_3.6.1.1.exe /quiet /l*v "C:\Temp\Testplan.log" LICMETHOD="NETWORK" LICPORT="8081" LICSERVER="SERVER1"
In addition to the start parameters mentioned above, the msiexec.exe start parameters can also be used. You can find details on this under MSDN.
The content refers to version 3.0
