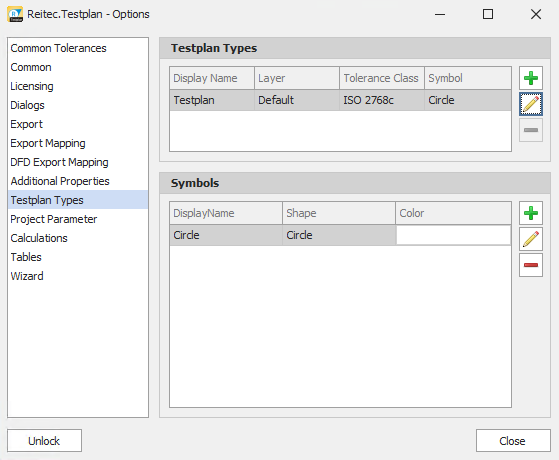

Area: Test plan Types
In this area you can view and edit the existing test plan definitions.
Test plan definition
Create a new test plan definition or edit an existing one. The selection is made via the selection list. Changes must be saved using the “Check” button.
Common
| Name | Description |
|---|---|
| Display name | Displayed name of the test plan definition. |
| Layer | The assigned layer. |
Symbol style
Here you define the appearance of the stamp symbol.
| Name | Description |
|---|---|
| Radius | Radius of the circle. |
| Text size | Size of the number text. |
| Offset X | Distance to the dimension in x direction. |
| Offset Y | Distance to the dimension in y direction. |
| Create arrow | Specifies if the arrowhead should be created. |
| Fill arrow | Specifies if the arrowhead should be filled. |
| Line distance | Specifies the distance of the line hatching in the arrowhead. The greater the distance, the faster the creation. |
The content refers to version 3.3
