Area Additional Properties

With properties, the feature data can be extended by user-defined input options.

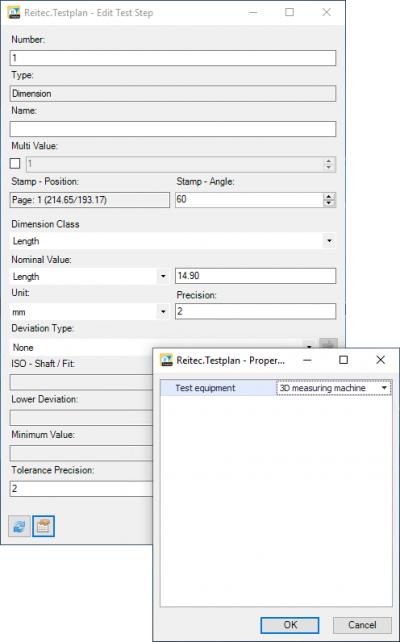

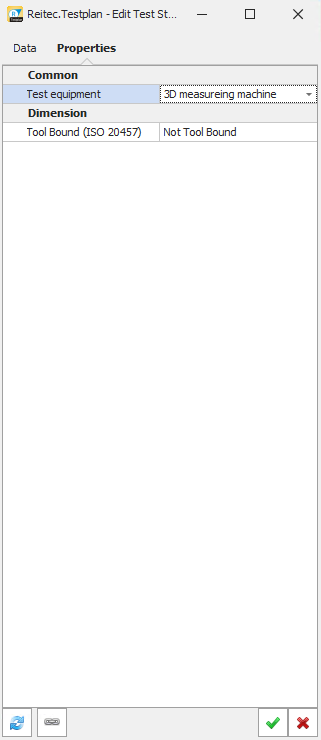

The property values can be changed in the property dialog.

The following functions are available in the dialog

Symbol	Description
	Creates a new property. Dialog description see below.
	Edit an existing property. Dialog description see below.
	Delete an existing property.
	Changes the display order. Property is moved up.
	Changes the display order. Property is moved down.

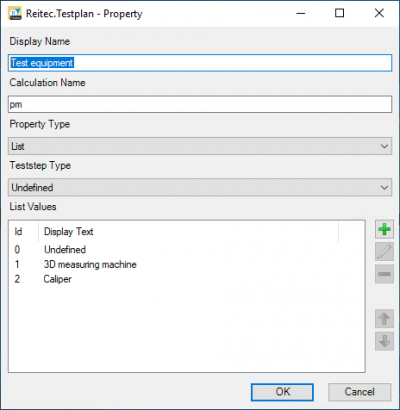

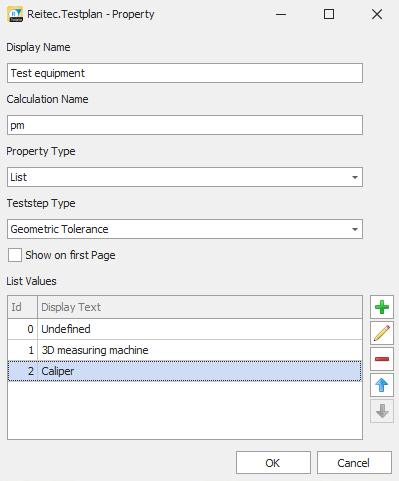

Dialog: Property

Field name	Description
Display Name	Text displayed in the application
Calculation Name	The short name used in calculations.
Property Type	Data type of the property (text, yes/no, floating point number, integer, list)
Teststep Type	Assigned characteristic type. Properties are only displayed for certain feature types.
List Values	List values for properties of type 'List'.
