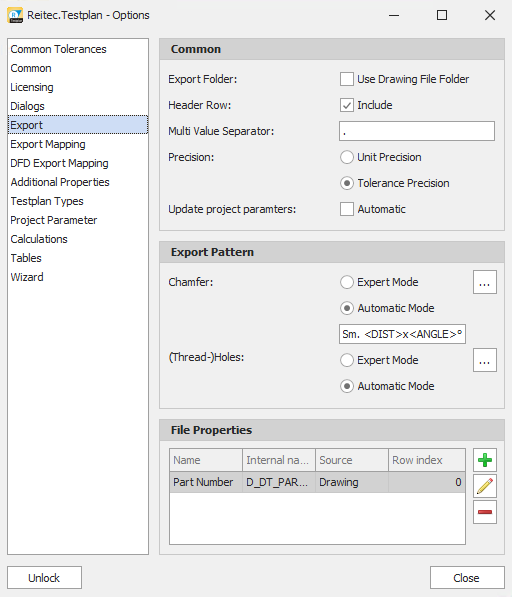

Area: Export
In this area you can define the settings for the export.
Common
| Name | Description |
|---|---|
| Export folder | Defines if by default the target path is the folder of the drawing. |
| Header | Defines if headings are to be exported. |
| Separator multi value | Specifies which separator is to be used for sub-numbering of multi values. |
| Precision | Specifies the precision to be used for the export. |
Export pattern
Two methods are available for extracting the characteristic data for chamfers and holes: the pattern-based expert mode and the internal automatic mode.
In automatic mode, you can define how the individual dimensions of a chamfer are to be linked on export. The following properties are available: DIST, DISTTOL, ANGLE.
For more information on pattern recognition, refer to the chapter Pattern Recognition

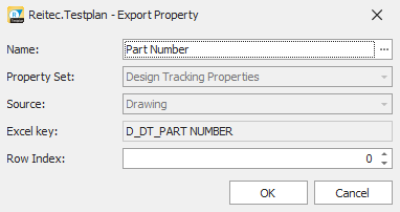

File properties
In this area you define which file properties are to be exported. That a file property is exported, it must be assigned to a project parameter via the key. See Chapter Project Parameters
The content refers to version 3.3
