Area: Dialogs

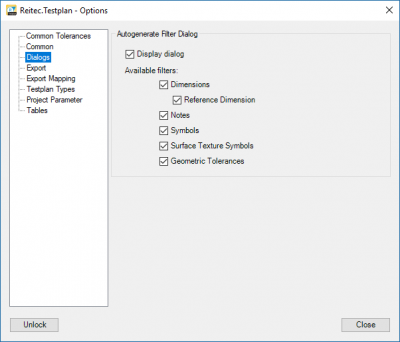

During the automatic generation of stamp symbols you have the option of defining a filter to mark only certain drawing elements. In this area you can now influence the default values for this dialog.
| Name | Description |
|---|---|
| Display dialog | Defines whether the filter dialog is displayed before each start of the autogeneration. |
| Dimension | Defines whether dimensions are to be marked. This can be further restricted by the setting for reference dimensions. |
| Notes | Defines whether notes are to be marked. |
| Symbols | Defines whether symbols are to be marked. |
| Surface Symbols | Defines whether surface symbols are to be marked. |
| Geometric Tolerances | Defines whether geometric tolerances are to be marked. |

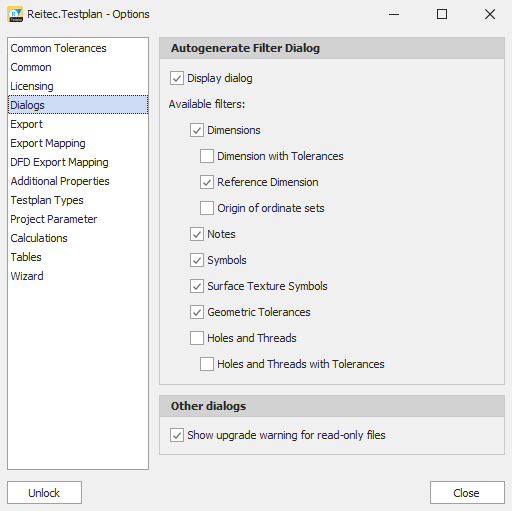

Other dialogs
Select whether to display the “Upgrade Warning” for read-only files.
The content refers to version 3.3
