DFD export assignment
The DFD file format is a proprietary file format of Q-Das®, which is, however, open and has been established as a quasi-standard in many areas of QS.

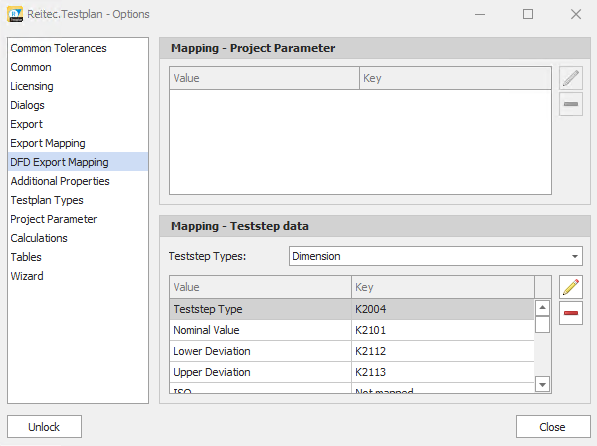

In the section “DFD export assignments”, you can now define how characteristic data, property values, project parameters and calculated values are assigned to DFD properties.

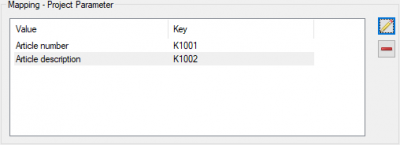

Project parameter assignment
Here, project parameters can be assigned to the superordinate DFD properties that are not related to characteristics.

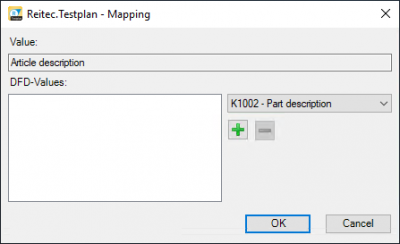

To define an assignment, use the button
. In the dialogue that opens, one or more DFD properties can now be assigned to the selected project parameter.
The following DFD properties are currently available:
| Key | Description | Required field |
|---|---|---|
| K1001 | Part number | X |
| K1002 | Part description | X |
Assignment of characteristic data
In this area, feature-related DFD properties, feature values, characteristics and calculated values can be assigned.

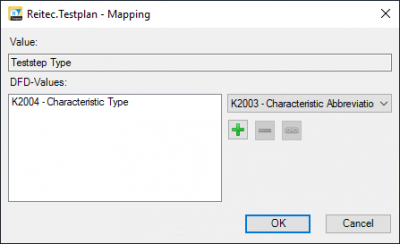

To define an assignment, use the button . One or more DFD properties can then be selected in the following dialogue.

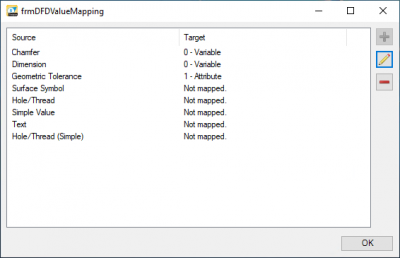

Some DFD properties only allow certain values (check boxes), in which case a further assignment must be defined at value level. This is done with the button
.
The following DFD properties are available.
| Key | Description | Required field | Selection field |
|---|---|---|---|
| K2001 | Characteristic Number | X | |
| K2002 | Characteristic Description | X | |
| K2003 | Characteristic Abbreviation | ||
| K2004 | Characteristic Type | X | |
| K2005 | Characteristic Class | X | |
| K2009 | Measured quantity | X | |
| K2022 | Decimal Places | ||
| K2091 | Characteristic index | ||
| K2101 | Nominal Value | ||
| K2110 | Lower Specification Limit | ||
| K2111 | Upper Specification Limit | ||
| K2112 | Lower Allowance | ||
| K2113 | Upper Allowance | ||
| K2120 | Lower Limit type | X | |
| K2121 | Upper Limit type | X | |
| K2243 | Drawing file name |
The content refers to version 3.3
