Area Calculations
Individual calculations can be made on the basis of feature data and properties. Calculated values are available for export.

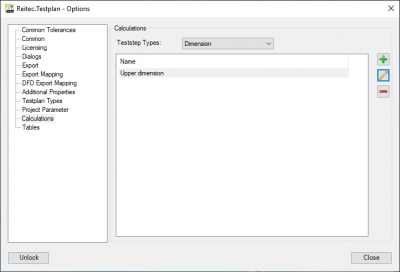

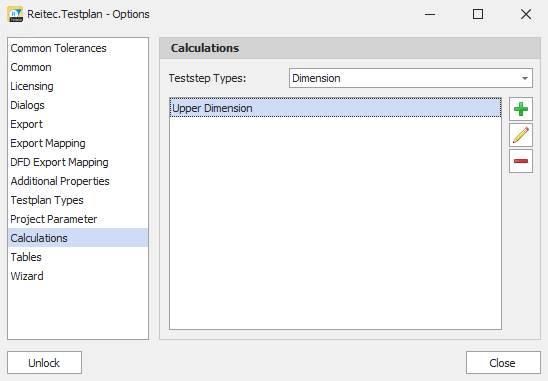

The following functions are available in the dialog.
| Symbol | Description |
|---|---|
 | Creates a new calculation. Description dialog see below. |
 | Edit an existing calculation. Description dialog see below. |
 | Delete an existing calculation. |

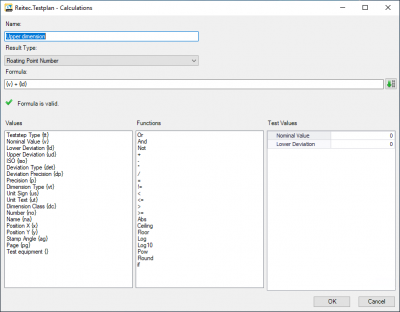

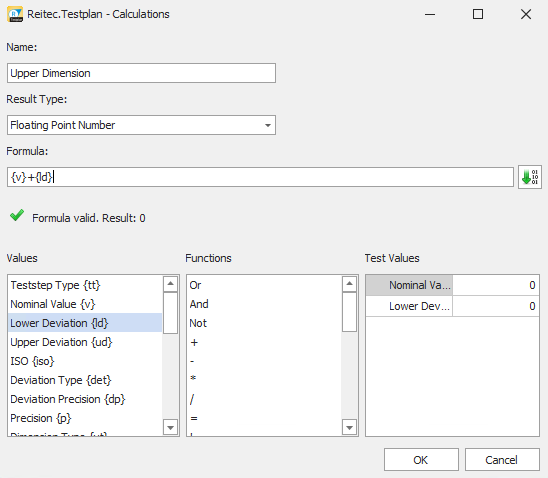

Dialog Calculations
List of available input fields
| Name | Description |
|---|---|
| Name | Display name of calculation in AddIn |
| Result Type | Return type of the calculation (floating point number, integer, text). |
| Formula | Calculation formula |
The value list shows the values available for the calculation. A short name is assigned to each value and by double-clicking on a value it is inserted into the formula.
The function list shows the available functions.
The test values can be used to test whether the syntax is correct and whether the calculation delivers the desired result.
